Add-On Modules
Wired or Wireless

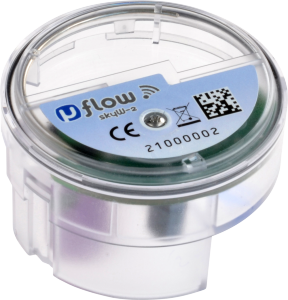

MODULARIS radio module FAM µflow skyW-2
Walk-by-Solution / AMR solution
- 868 MHz
- Unidirectional radio transmission
- wM-Bus
- Mode: T1, C1
- Two selectable short radio telegrams (OMS)
- Two selectable radio telegrams with 15 monthly values
- Radio days and hours flexibly programmable
- Radio configurator – webinterface for parameterzation
MODULARIS radio module FAW
Walk-by solution / AMR solution
- 868 MHz
- Unidirectional radio transmission
- wM-Bus
- Mode: T1, C1, S1
- Choice of telegram: either short (OMS) or long (walk-by)
- Large transmission range
- Individually parameterizable
MODULARIS radio module Supercom W1-0
Walk-by solution / AMR solution
- 868 MHz
- Unidirectional radio transmission
- wM-Bus
- T1 mode
- Choice of telegram: either short (OMS) or long (walk-by
- Individually parameterizable, password protected
- AES-128 encryption for secure data transmission
- Precise and correct detection of the forward and backward movement of the modulation pointer
- For water meters with flow rates from Q3 2.5 m3/h to 25 m3/h
- Tamper detection (in case of disassembly or magnetic interference)
- Storage of current and historical consumption data, key date values and errors
- Automatic activation after adjustable flow rate
Datasheet and Instructions:
Radio Module Supercom W1-R / W1-O / W1-L
Installation Supercom W1 (DE, EN, FR, IT)
MODULARIS radio module Supercom W1-L (LoRa)
Walk-by solution / AMR solution
- 868 MHz
- Bidirectional radio transmission
- LoRaWAN (Spec. V1.0.2)
- Class A
- Choice of telegram: either short (SF10-12) or long (SF7-9)
- Parameterizable, password protected
- Individual AES-128 encryption for secure data transmission
- Precise and correct detection of the forward and backward movement of the modulation pointer
- For water meters with flow rates from Q3 2.5 m3/h to 25 m3/h
- Tamper detection (in case of disassembly or magnetic interference)
- Storage of current and historical consumption data, key date values and errors
- Automatic activation after adjustable flow rate
Datasheet and Instructions:
Radio Module Supercom W1-R / W1-O / W1-L
Installation Supercom W1 (DE, EN, FR, IT)
MODULARIS radio module Supercom W1-R (Sontex)
Walk-by solution / AMR solution
- 433 MHz
- Bidirectional radio transmission
- Data collection via data center or mobile readout device (walk-by)
- Large transmission and reception range
- Individually parameterizable
- Attachment detection
- Precise and correct detection of the forward and backward movement of the modulation pointer
- Radio telegram for current values or with historical values
- AES-128 encryption for secure readout
- For water meters with flow rates from Q3 2.5 m3/h to 25 m3/h
- Tamper detection (in case of disassembly or magnetic interference)
- Storage of current and historical consumption data, key date values and errors
- Automatic activation after adjustable flow rate
Datasheet and Instructions:
Radio Module Supercom W1-R / W1-O / W1-L
Installation Supercom W1 (DE, EN, FR, IT)
MODULARIS radio Q module 5.5
Walk-by solution / Collector solution
- 868 MHz
- Unidirectional radio
- wM-Bus
- Modes: C1, S1
- Short telegram according to OMS and long telegram for walk-by/drive-by remote reading
- Large transmitter range
- Individually parameterizable
- AES-128 encryption for secure readout
- Precise and secure forward and backward detection of modulation pointer movement
For detailed information please contact QUNDIS GmbH, Erfurt directly.
MODULARIS M-Bus module
- Individually parameterizable
- Primary and secondary address
- Back-up battery during power failure
- Detection of rotation direction
- Lifetime of product: Minimum 12 years
- Lifetime of back-up battery: 2 years (without M-Bus connection)
- Protection class IP68
- Reference standard EN 1434-3
MODULARIS pulse generator
- Interface-compatible to reed contacts
-SO DIN 43864 - Pulse valency from 1 up to 1000 litres per pulse
- For retrofitting on water meters for wired remote reading systems
- Can also be integrated into radio remote reading systems with additional radio adapter
- Individually parameterizable (to be specified when ordering
- Detection of rotation direction
- Battery lifetime of up to 13 years
- Protection class IP68
Multi-jet wet-rotor impulse module
- Glandless pulse module, S0 according to DIN 43864 available alternatively with
– 10 liters per pulse
– 100 liters per pulse - For retrofitting on water meters for wired remote reading systems
- With additional radio adapter product designation can also be integrated into radio remote reading systems
- Battery life 12 years
- Protection class IP 68
Only possible with pre-equipped meters or measuring inserts with:
– Fixing ring (transparent)
– Scanning pointer AMR
